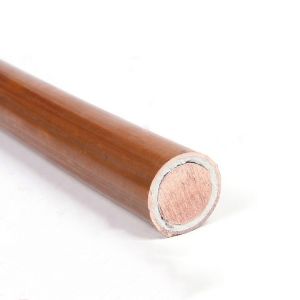

Waterproof Fire Resistance Cable Mineral Insulated Electrical Cables Customizable

Name: Waterproof Fire Resistance Cable Mineral Insulated Electrical Cables Customizable
Brand: Zhufeng
Price: 3.27 USD

Quality Waterproof Fire Resistance Cable Mineral Insulated Electrical Cables Customizable for sale

Place of Origin : Hebei, China

Brand Name : Zhufeng

Model Number : BTTZ

Certification : ISO, CCC, CE, RoHS

MOQ : 1000 meters

Price : $3.27/meters 1000-2999 meters

Insulation Material : Inorganic Mineral

Type : LOW VOLTAGE

Application : Construction, Underground, Industrial, Power Station

Conductor Material : Copper

Jacket : Copper

Number of Cores : 1/2/3/4/7/12/19 cores

Specification : 1.5-400mm²

Rated voltage : 700V(600/1000V)

Transport Package : Wooden Drum

Other Service : Can be customized

Contact Now

Product Description

Waterproof Fire Resistance Cable Mineral Insulated Electrical Cables Customizable

The Mineral Insulated Cable is the safest choice for power and heating (prevention and protection from fire in industrial and civil applications) as well as for electrical heat tracing (industrial and building processes).Mineral insulated cable is made of absolutely inert materials with a mineral base and has following the properties.
1. An extremely high melting point, much higher than temperatures recorded in the presence of fire.
2. Extremely high durability due to the electrical and mechanical properties of the material used
3. High mechanical resistance due to an outer metallic sheath and the high compression of magnesium powder.
4. Excellent pliability and workability, helping to greatly reduce installation times.
5. High performance in terms of temperature resistance and strength of sheath, if used as a heating cable.

ADVANTAGES OF MINERAL INSULATED CABLES

Fireproof: The power cable can withstand very high temperatures (higher than 1000°C) since all its components are inorganic. It can go on working during a fire, maintaining power to all emergency services, allowing all safety and protection measures within the building to be activated.

Waterproof: The mineral insulated metallic sheath and special IP67 waterproof fittings prevent the penetration of water, and dust towards the cores. The Mineral insulated cables are also suitable for outdoor applications or for installation under concrete if properly protected against Eddy current.

Mechanical strength: The metallic sheath acts as a protective screen, and therefore Mineral insulated cables can withstand extremely high mechanical stress such as crushing and curvature with a bending radius equal to 6 times the diameter of the cable.

High operating temperatures: The mineral insulated cable with a copper sheath (power and heating) can work at ambient temperatures of up to 250°C; the cable with a CuproNickel sheath can withstand up to 400°C; for higher temperatures, the lifetime of the cable lessens as it approaches the melting point of copper (1083°C).

Specification

item	value
Place of Origin	China
	Hebei
Brand Name	Zhufeng
Model Number	BTTZ
Insulation Material	Inorganic Mineral
Type	LOW VOLTAGE
Application	Construction, Underground, Industrial, Power Station
Conductor Material	Copper
Jacket	Copper
Number of Cores	1/2/3/4/7/12/19 cores
Specification	1.5-400mm²
Rated voltage	700V(600/1000V)
Transport Package	Wooden Drum
Certification	ISO, CCC, CE, RoHS, Ice, En, BS
Other Service	Can Be Customized
